Humidity Sensors

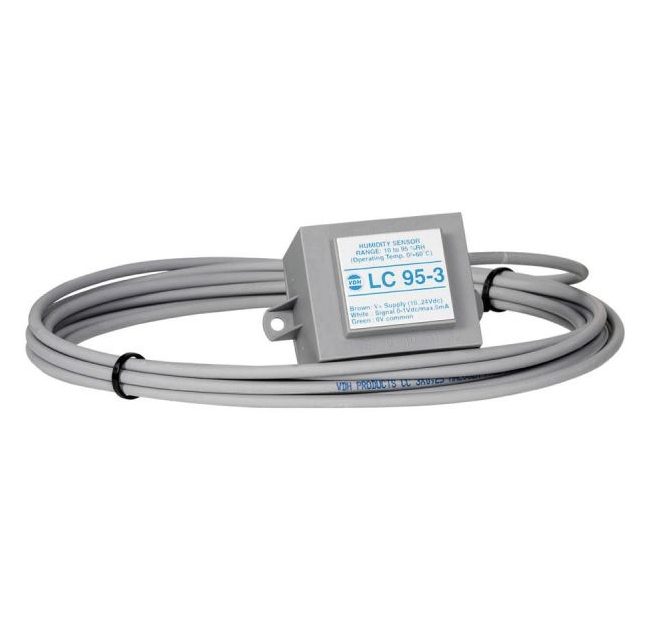

LC 95 Humidity Sensor
Electronic relative humidity sensor, mounted in a universal plastic housing with a fixed connection cable of 2 or 4 metres. The working range of the sensor is between 10 and 95% RH at temperatures between 0/+60°C. The sensor is not suitable for condensing air.
| Dimensions: | 50 x 42 x 38 mm |
| Length: | 2 or 4 Metre |
| Range: | 10 to 95% RH at 0-60°C |

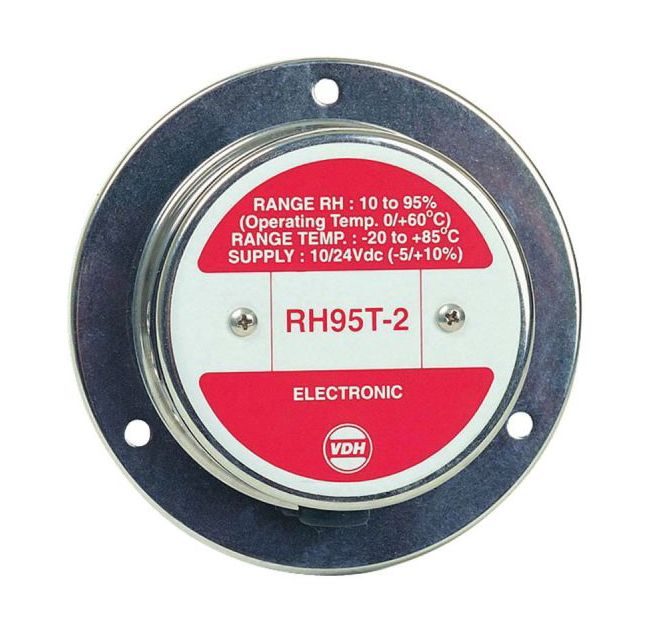

RH 95 Humidity Sensor
Electronic relative humidity sensor for many applications in the cooling and climate control industry, mounted in a stainless steel housing with a grommet for the cable input on the bottom as well as the back side. The housing is perforated to ensure sufficient air flow for ventilation. The sensor is not suitable for condensing air.
| Dimensions: | 35 x 80 mm |
| Sensor Options: | PT-100, PT-1000, PTC Element |
| Range: | 10 to 95% RH at 0-60°C |

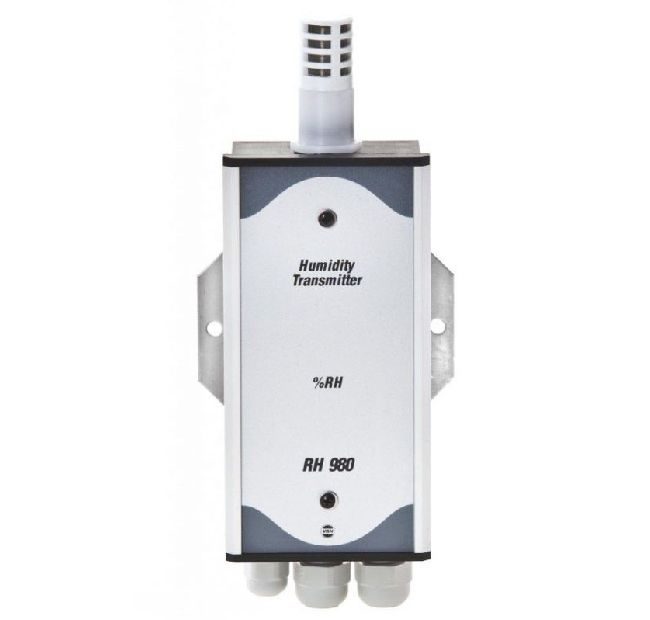

RH980 Humidity Sensor
The sensor has a watertight housing (IP-54) of a modern industrial design, available for different current (4-20mA) and voltage (0-1 & 0-10Vdc) outputs for the RH and temperature signals. Sensor element can be easily replaced when necessary.
| Dimensions: | 144 x 72 x 50 mm |
| Housing: | Black ABS Plastic, Polyester IP54 front. |
| Range: | 0 to 100% RH at -20 to +60°C |
