TK085 Thermometer Range
A range of thermometers for use in cold rooms and other refrigeration installations. This thermometer has a timeless housing, of which the visible part is stainless steel.
Customisable dial can optionally include a company logo.

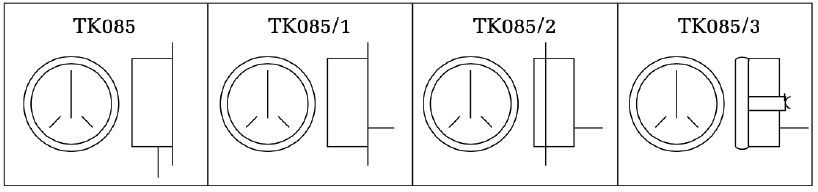

Mounting Options:
Technical Specification
Sensor material: Brass 70 x ø6.6 mm
Measure range: -50/+50°C per 1°C, -50/0°C blue print, 0/+50°C red print
Measuring element: Organic fluid expansion linked to a wound bourdon spring, without additional use of a transfer mechanism - no parts subject to wear. Available with temperature compensation on request
Tech Capillary: Flexible black plastic with a copper core, diameter 3.5 mm. Standard length 1500mm (max 15m)
Controls: Temperature correction via screwdriver correction on the back of the housing
Accuracy: ± 2% of the measuring range
Waterproof: Equipped with waterproof bayonet closure
Diameter: Available in 63mm, 100mm, 160mm, 250mm
Mounting Options: Rear or bottom
